上模配有撓度補償機構,250噸和長度4000MM以上機床可采用下?lián)隙妊a(bǔ)償機構。
Performance and characteristics:
All-steel welded structure, vibration eliminates stress, high mechanical strength and good rigidity;
Hydraulic upper transmission, stable and reliable;
Mechanical stop, synchronized torsion axis, high precision;

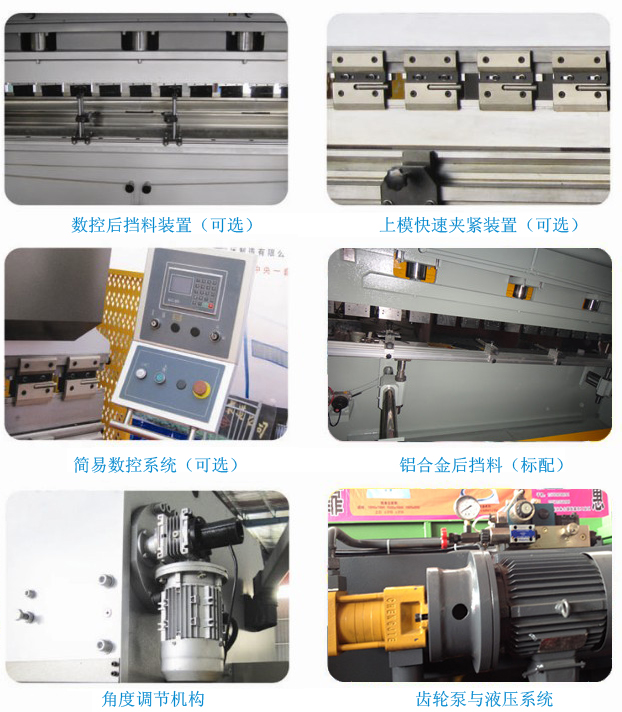

Backgauge distance, upper slider stroke, electric adjustment, manual fine adjustment device, digital display;
The upper mold is equipped with a deflection compensation mechanism, and a machine tool with a capacity of 250 tons and a length of 4000 mm or more can use a lower deflection compensation mechanism.
