      性能與特點
      1.Wc67k系列采用兩臺規格主機。配有雙機聯動同步裝置;
      2.雙機聯動折彎?rùn)C(jī)可加工特長工件,特別適合于城市建設、高速公路的路燈桿、電力桿等特長工件加工制造;
      3.兩臺機器亦可以單獨使用,提高生產效率;
      4特殊需求可專門設計制造;

      Performance and characteristics

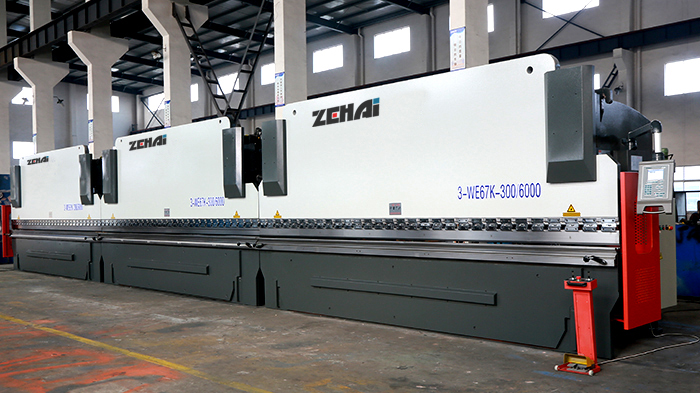

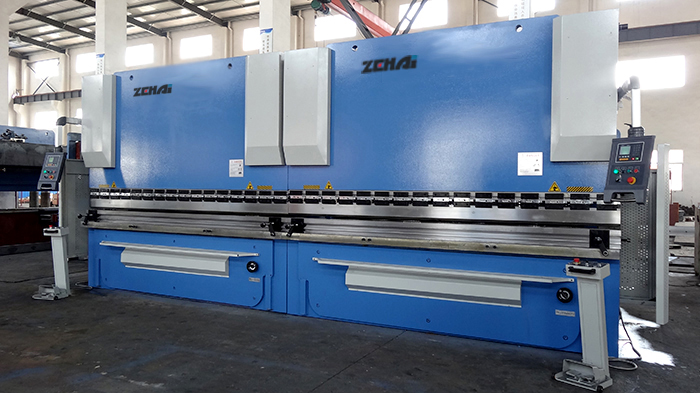

      1.Wc67k series uses two specifications of the host. Equipped with two-machine linkage synchronization device;
      2. The dual-machine linkage bending machine can process extra-long workpieces, especially suitable for the manufacture of extra-long workpieces such as urban construction, highway lampposts and power poles;
      3. The two machines can also be used independently to improve production efficiency;
      4 Special requirements can be specially designed and manufactured;

      標準配置

      下載中心




      技術參數表 【特殊規格】可根據客戶需求提供參數
      規格型號 2-
      100/3200
      2-
      100/3200
      2-
      160/3600
      2-
      160/4000
      2-
      160/5000
      2-
      160/6000
      2-
      250/3200
      2-
      250/4000
      2-
      250/5000
      2-
      320/4000
      公稱力
      kn
      2×1000 2×1600 2×1600 2×1600 2×1600 2×1600 2×2500 2×2500 2×2500 2×3200
      工作臺長度
      mm
      2×3200 2×3200 2×3600 2×4000 2×5000 2×6000 2×3200 2×4000 2×5000 2×4000
      立柱間距離
      mm
      2600 2550 2950 3350 4100 5100 2700 3300 4100 3300
      喉口深度
      mm
      320 320 320 320 500 500 400 400 400 400
      滑塊行程
      mm
      150 200 200 200 200 200 250 250 250 250
      工作臺與
      滑塊間
      最大開啟
      高度
      450 500 500 500 500 500 500 500 500 500
      主電機功率
      kw
      2×7.5 2×11 2×11 2×11 2×11 2×11 2×15 2×15 2×15 2×15
      機器外形
      尺寸
      (長*寬*高)
      mm
      2×3740
      1585
      2670
      2×3740
      2045
      3080
      2×4140
      2045
      3080
      2×4545
      2045
      3080
      2×5530
      2435
      3630
      2×6530
      2435
      3630
      2×4000
      2250
      4060
      2×4800
      2250
      4060
      2×5800
      2250
      4060
      2×4060
      2570
      4560
